LiLLY LED Phototherapy lamp

Phototherapy lamp Lilly represents the top of the class. The state-of-the-art LED technology is used for neonatal hyperbilirubinemia treatment.
A unique device combines safe therapy, ultra long life of radiators, treatment effectiveness and economical operation.

It emits intensive light radiation within the spectrum of 440 – 470 nm to reduce bilirubin concentration in the neonatal body.

Key features

Key Features

  • Long LED life

  • White examination light allows correct identification of the infant’s skin colour

  • Aiming function – activation of two red light points for a correct positioning

  • Automatic or manual intensity control

  • Device programmable with buttons or PC

  • Patient temperature control via alarm

  • Low noise level and easy to maintain

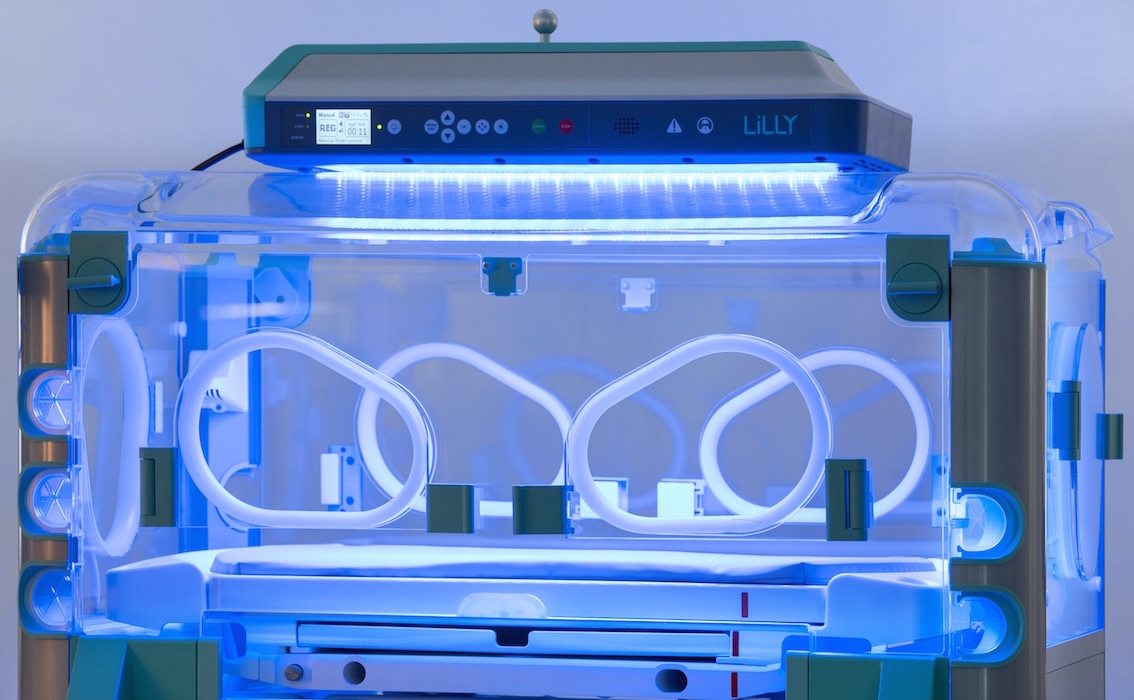

  • Use the lamp freely on an incubator or with a stand over an infant bed or a warmer

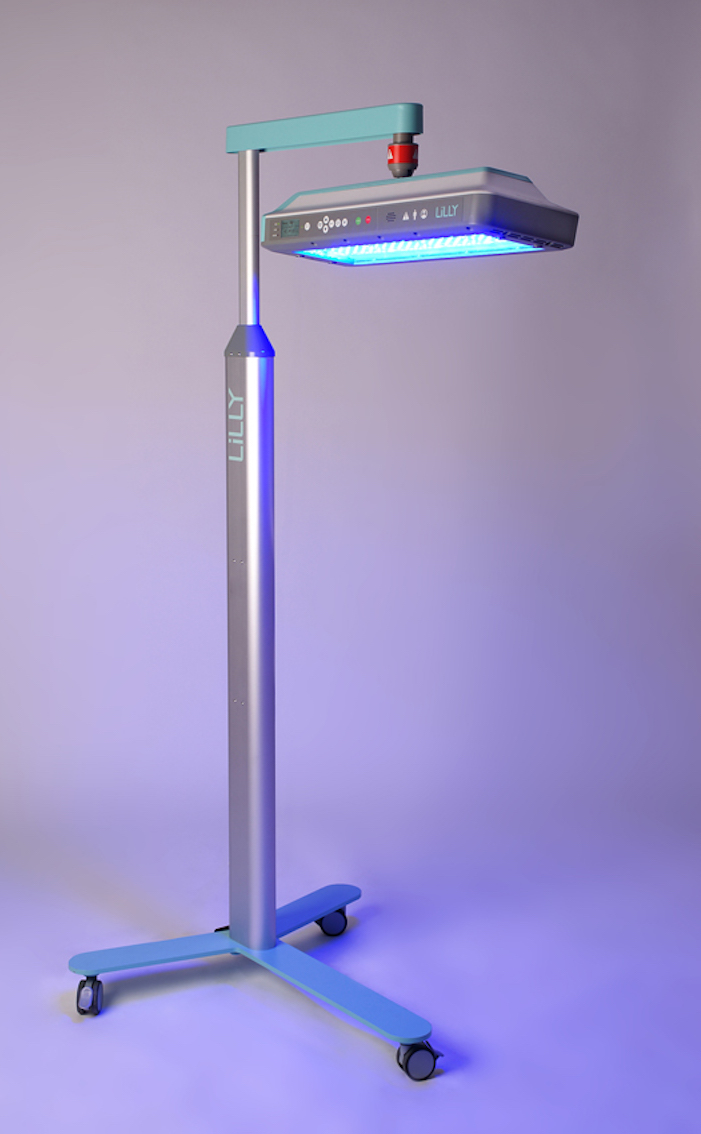

  • Height adjustable stand and flexible positioning of the radiator  in all directions

Full technical documentation

Technical Specifications

Click to view the full specifications
TECHNICAL SPECIFICATIONS: Phototherapy Lamp FTL-620
Unit type identification FTL-620
Power voltage 110 - 230 VAC, 50/60 Hz
Power input 100 VA
Applied part Type BF (body temperature sensor)
Dimensions Without stand: Height: 119 mm, Length: 588 mm, Width: 244 mm
With stand: Height: 1438-1778 mm, Length: 958 mm, Width: 750 mm
Weight Phototherapeutic device: 5 kg
Phototherapeutic device with stand: 21 kg
Light wavelength 400 – 550 nm
Dominant wavelength 460 – 480 nm
Radiated area (effective surface) 615 x 480 mm (at distance 500 mm & 720 mm)
600 x 300 mm (at distance 360 mm)
Distance from effective surface 500 mm
Temperature measurement range 25 - 43 °C
Temperature measurement accuracy ± 0.3°C
Preset alarm limit 0.3%
Patient's weight on the bed Upper limit of body temperature alarm: 38.5˚C
Range of setting body temperature limits by user Maximum body temperature alarm: 43˚C
Noise max. 38 dB
LED radiator life 60,000 h
Max. lifetime of body temperature sensor 7 years
Height adjustment range with the LiLLY stand 1200 – 1550 mm (radiator distance from floor)
Modes (at distance 500 mm, use on stand & incubator top cover) Manual mode - Standard: 30 µW/cm²·nm ±10%
Manual mode - Intensive: 60 µW/cm²·nm ±10%
Therapeutic mode: 10 - 60 µW/cm²·nm ±10%

Technical Documentation

Download
